June 2016 Tech Tip: Bushing Removal
![](https://i0.wp.com/www.captureintegration.com/wp-content/uploads/2016/06/techtip-july-2016-banner.jpg?resize=700%2C200)
3/8″ to 1/4″ Bushing Removal on Phase One 645 cameras.

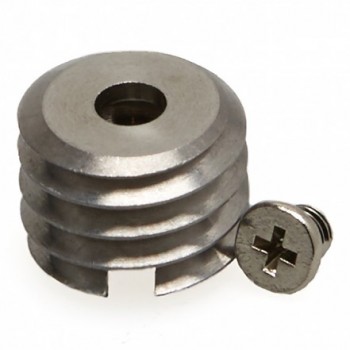

Phase One 645 bodies have a 3/8ths tripod mount at their base that is reduced to 1/4” with a bushing for mounting most smaller tripod heads. The bushing is held in place by a small phillips head fixating set-screw so that the bushing doesn’t rotate out as you trade out mounting plates or tripod mounts. In order to remove the 1/4” bushing the set screw must be removed first.
![](https://i0.wp.com/www.captureintegration.com/wp-content/uploads/2016/06/70305-0250_new-441x441-350x350.jpg?resize=350%2C350)
If you’ve already attempted to remove the bushing and it wouldn’t budge, do not attempt to remove the set screw without first re-tightening the bushing!! The load force set onto the set screw by loosening the bushing against it will prevent you from removing the set screw, likely resulting in a stripped set screw that can lead to your camera needing to go in to repair to remove it.
Find the 3/8″ to 1/4″ bushing & fixating screw for 645DF/XF tripod mount here.
