Everything About EIZO’s New ColorEdge 27″ HDR Monitors
HDR
The ColorEdge CG2700X is one of the flagship models for the latest generation of ColorEdge color management monitors. It features HDR gamma support, USB Type-C connectivity, a built-in calibration sensor, and a new cabinet design.
Render images more true to how the human eye perceives the real world. These monitors support HLG (hybrid log-gamma) and the PQ (perceptual quantization) curve for displaying and editing HDR video content.
4K Ultra HD
The ColorEdge CG2700X displays at 4K UHD (3840 x 2160) resolution, which is four times the size of Full HD. The remarkable detail ensures that high resolution content is displayed crisply.
The 27-inch screen provides ample space for displaying 4K content natively or Full HD content in full with enough space to show toolbars, palettes, and other windows or applications. This makes the monitor versatile for video editing, 3DCG creation, game development, photography, and other creative fields.
Connectivity & Power

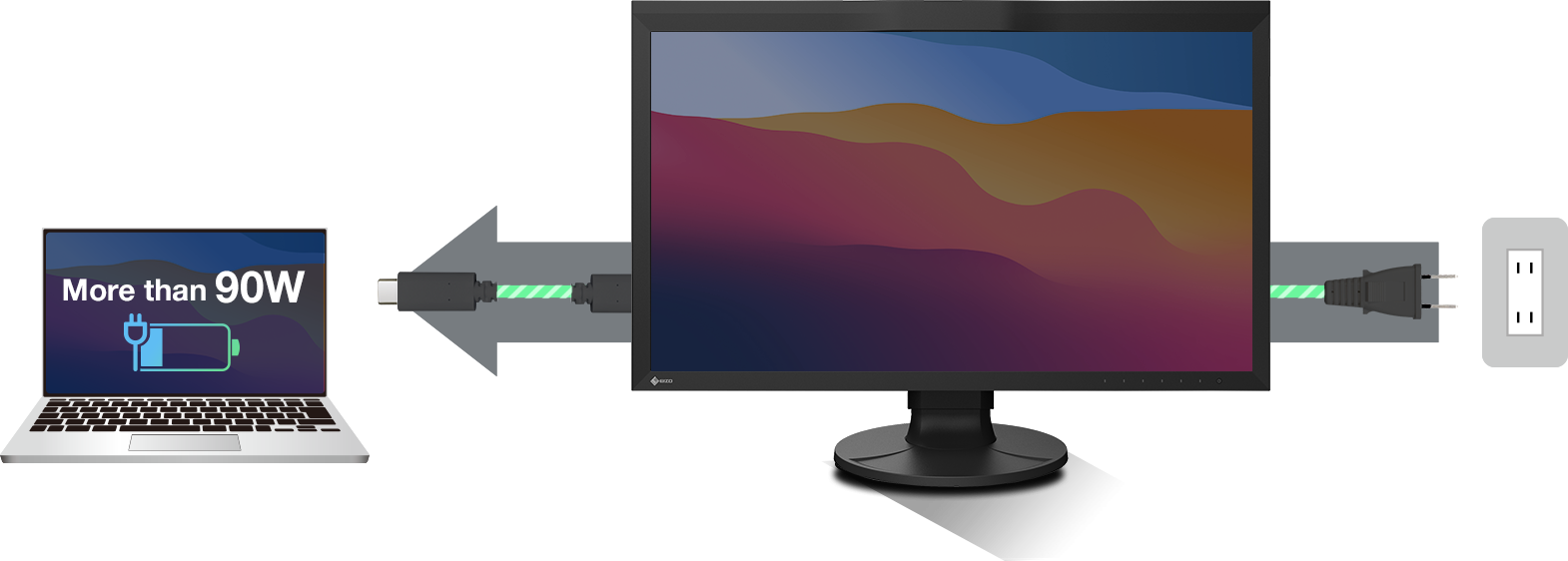

The ColorEdge CG2700X features USB Type-C connectivity that allows you to display video, transmit USB signals, and supply power to a connected device such as a tablet or notebook PC. This convenient multi-purpose connectivity makes it faster and easier to connect when moving between workstations or working remotely.
The ColorEdge CG2700X reliably charges a MacBook Pro or other high-end laptops with 94 W power delivery. This eliminates the need for a laptop’s bulky power supply unit, freeing up space in your bag and on the desk.
Built-In Calibration
ColorEdge were the first monitors in the world to have a built-in calibration sensor for color critical applications. This eliminates the need for a third-party calibration device and ensures your screen stays color-accurate. In addition, the sensor swings onto the screen, taking up minimal space and allowing you to continue working even during calibration.
EIZO’s proprietary ColorNavigator 7 software provides an intuitive and highly precise solution to color management. It allows you to schedule automatic recalibration, calibrate all color modes simultaneously, and conduct correlation with external sensors to match the studio’s internal color management framework. Calibration information is saved to the monitor instead of the operating system so users do not have to recalibrate even when using a different PC.
Wide Color Gamut

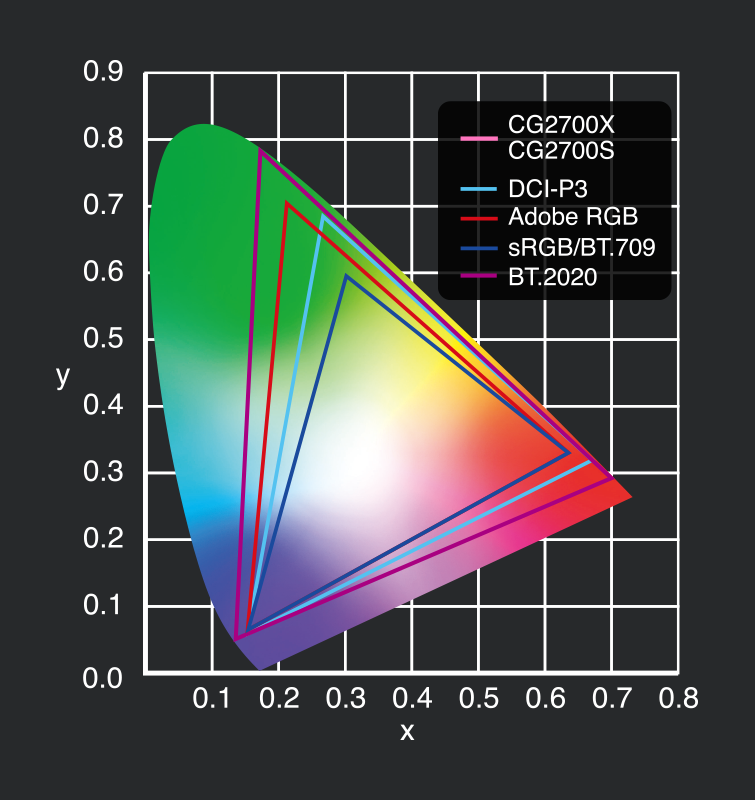

The monitor’s wide color gamut faithfully reproduces 98% of the DCI-P3 standard used in digital cinema and supports the BT.2020 standard used in broadcasting. In addition, it covers 99% of the Adobe RGB color space so images shot in Adobe RGB will be displayed correctly.
The monitor uses a 3D LUT which adjusts colors individually on an RGB cubic table. With the supported ColorNavigator 7 software’s emulation function, creators can check how content will appear to their audience. The 3D LUT also improves the monitor’s additive color mixture (combination of RGB), which is a key factor in its ability to display neutral gray tones.
Using the DisplayPort or HDMI input, the ColorEdge monitor offers 10-bit simultaneous display* from a 16-bit look-up-table (LUT) which means it can show more than one billion colors simultaneously. This is 64 times more colors than you get with 8-bit display, resulting in smooth color gradations and reduced Delta-E between two adjacent colors.
SPECIFICATIONS
| Model Variations | CG2700X-BK |
|---|---|
| Panel | |
| Type | IPS |
| Backlight | Wide-Gamut LED |
| Size | 26.9″ (68.4 cm) |
| Native Resolution | 3840 x 2160 (16:9 aspect ratio) |
| Viewable Image Size (H x V) | 596.2 x 335.3 mm |
| Pixel Pitch | 0.155 x 0.155 mm |
| Pixel Density | 164 ppi |
| Display Colors | 1.07 billion colors, 10-bit display (from a palette of 278 trillion, 16-bit LUT) |
| Viewing Angles (H / V, typical) | 178°, 178° |
| Brightness (typical) | 500 cd/m2 |
| Contrast Ratio (typical) | 1450:1 |
| Response Time (typical) | 13 ms (gray-to-gray) |
| Color Gamut (typical) | Adobe RGB: 99%, DCI-P3: 98% |
| Video Signals | |
| Input Terminals | USB Type-C (DisplayPort Alt Mode, HDCP 2.3), DisplayPort (HDCP 2.3), HDMI (Deep Color, HDCP 2.3) |
| Digital Scanning Frequency (H / V) | USB Type-C, DisplayPort: 25 – 137 kHz / 23 – 61 Hz HDMI: 15 – 135 kHz / 23 – 61 Hz |
| USB | |
| Upstream | USB 3.1 Gen 1: Type-C (DisplayPort Alt Mode, Power Delivery Source 94 W max.), USB 3.1 Gen 1: Type-B |
| Downstream | USB 3.1 Gen 1: Type-A x 2 USB 2.0: Type-A x 2 |
| USB LAN Adapter | RJ-45 (1000BASE-T) |
| Power | |
| Power Requirements | AC 100 – 240 V, 50 / 60 Hz |
| Typical Power Consumption | 34 W |
| Maximum Power Consumption | 225 W |
| Power Save Mode | 0.5 W or less |
| Built-in Calibration Sensor | Yes |
| Features & Functions | |
| Brightness Stabilization | Yes |
| Digital Uniformity Equalizer | Yes |
| Preset Modes | User, BT.2020, BT.709, DCI-P3, PQ_DCI-P3, HLG_BT.2100, AdobeRGB, sRGB, Calibration (CAL), SYNC_SIGNAL |
| HDR Gamma | HLG, PQ curve |
| OSD Languages | English, German, French, Spanish, Italian, Swedish, Simplified Chinese, Traditional Chinese, Japanese |
| Others | Color Adjustment, PQ Option, HLG Option, SelfCalibration, Input Color Format, YUV Color Matrix, Input Range, I/P Conversion, Picture Expansion, Zoom, DCI 4K Cropping, BT.709 Gamut warning, Luminance Warning, Marker, Menu Rotation, Power Save, Input Skip, Mode Skip, Custom Key, Information Display, Key Lock, DUE Priority, Ethernet |
| Physical Specifications | |
| Dimensions (Landscape, W x H x D) | 638 x 415.9 – 570.9 x 245 mm |
| Dimensions (Without Stand, W x H x D) | 638 x 390 x 86.2 mm |
| Dimensions (Landscape with Hood, W x H x D) | 657.4 x 425.6 – 580.6 x 353.5 mm |
| Net Weight | 9.7 kg |
| Net Weight (Without Stand) | 6.7 kg |
| Net Weight (With Hood) | 10.4 kg |
| Height Adjustment Range | 155 mm |
| Tilt | 35° Up, 5° Down |
| Swivel | 344° |
| Pivot | 90° |
| Hole Spacing (VESA Standard) | 100 x 100 mm |
| Environmental Requirements | |
| Operating Temperature | 0 – 35°C |
| Operating Humidity (R.H., non condensing) | 20 – 80% |
| Certifications & Standards (Please contact EIZO for the latest information.) | CB, CE, UKCA, TUV/GS, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, PSE, VCCI-B, RCM, EAC, RoHS, WEEE, TUV/Ergonomics, TUV/Color Accuracy (Quick Stability), FograCert Softproofing System (class A) |
| Proprietary Software | |
| Color Management Software ColorNavigator 7 | Supported |
| Supplied Accessories (May vary by country. Please contact EIZO for details.) | |
| Signal Cables | USB Type-C (2 m), HDMI (2 m) |
| Others | AC power cord, USB Type-A – USB Type-B cable (2 m), Setup guide, Adjustment certificate, ScreenCleaner, Monitor hood, Warranty card |
| Warranty | 5 Years 2 5 Zero bright sub-pixels for six months from date of purchase for purchases made on September 1, 2015 or later. |
| Dimension Drawing |
