Cambo: Upgrade Your Ultima to Actus

Cambo has been successfully selling Ultima view cameras over the past 18 years. Now having great success with the new possibilities of the ACTUS system, Cambo will offer the option to update existing Ultima users to the advantages of the ACTUS system, such as a broad selection of adaptations, the ease of sensor rotation within the bayonet mount, and the magnetic click-on bellows.

Cambo is now introducing update kits that are quick and easy to install. The Ultima user will get access to the same adaptation possibilities as the ACTUS offers, such as the lens plates that accept system lenses of Canon, Nikon, Leica-R, Pentax645 next to the Hasselblad and Mamiya and #0, #1 or m39 based lenses. All in combination with mirrorless camera bodies, or a selection of DSLR camera bodies.

There is also a version for mounting digital backs. Just a quick change of the Camera holder for the Digital back holder makes it very easy to change platforms between jobs. The bellows with magnetic attachments connect and disconnect in just seconds.

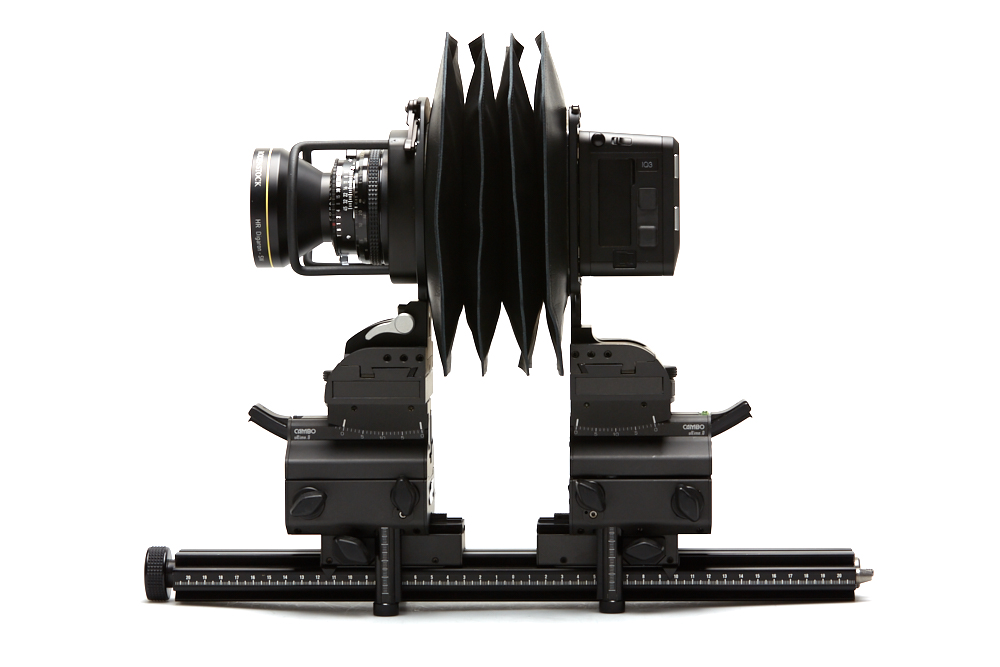

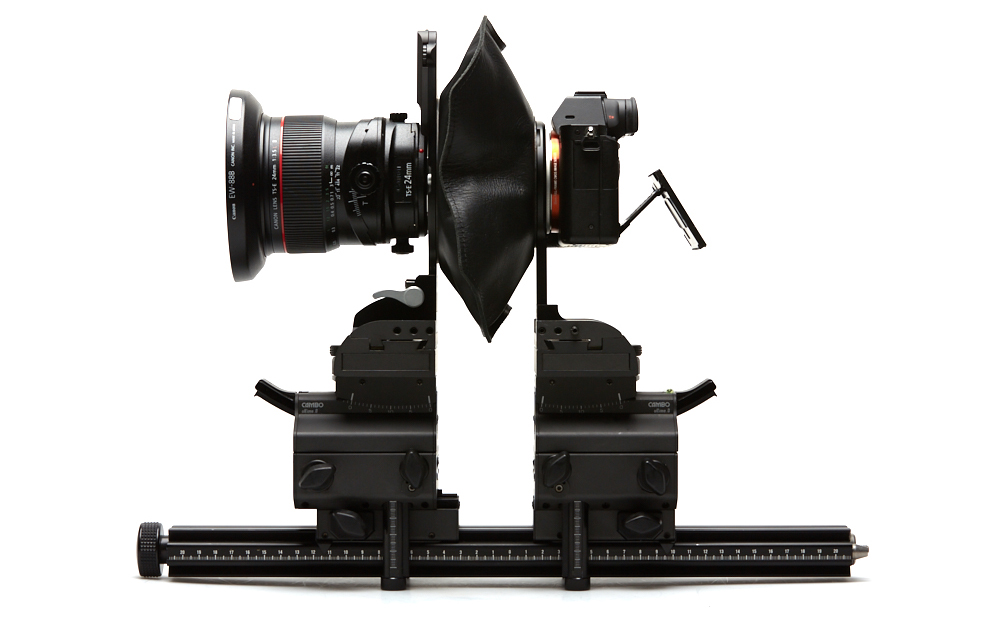

Cambo Actus Mini

ACXL-365 package
includes front mount, rear mount for camera bayonet and a AC-214 bellows.
You only have to add the correct bayonet from the Actus series (AC-780 up to 790) and lens panels for your lenses.

Upgrade your existing Cambo Ultima with this conversion package and take advantage of the features that make the ACTUS so different from other platforms.

There are camera mounts for Canon DSLR and M3, Nikon DSLR, Leica M, Sony E, Micro Four-Thirds, Olympus OMD and Fuji X.

Just replace the front and rear frames with these new parts and you can mount all Actus lens panels on the front standard and all Actus camera bayonets to the rear standard and connect both with the included bellows AC-214 with 250mm extension, matching the Ultima’s monorail length of 30cm.

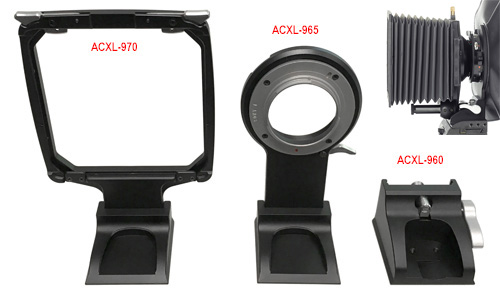

The front lens panel mount block ACXL-960 has also been prepared to use the Ultima compendium UL-343.

The rear bayonet mount ACXL-965 has the same rotating capability as the Actus, where you can rotate the camerabody in a fraction of a second from landscape to portrait position without removing the camera nor the bellows.

Cambo Actus DB

ACXL-370 package
includes front mount, rear mount frame for digital back and a AC-254 bellows. You only have to add the SLW adapter and lens panels for your lenses.

Upgrade your existing Cambo Ultima with this conversion package for use with Digital backs, and take advantage of the features that make the ACTUS so different from other platforms.

Just replace the front and rear frames with these new parts and you can mount Actus lens panels on the front standard and the interchangeable Cambo SLW-adapters to the rear standard and connect both with the included bellows ACDB-254 with 300mm extension, matching the Ultima’s monorail length of 30cm.

The front lens panel mount block ACXL-960 has also been prepared to use the Ultima compendium UL-343. The rear frame mount ACXL-970 accepts the Cambo SLW-adapter that is used on the Cambo WideRS platform and the CSLB/CMSLB sliding backs.

The ACXL-960 opens up more lens possibilities, there are mounts available now for; #0, #1, M39 Thread, Leica-R bayonet, Hasselblad V bayonet, Mamiya RB/RZ bayonet, Nikon F bayonet, Canon EOS bayonet, Mamiya Pro TL bayonet and Pentax 645 bayonet.

For more information contact Capture Integration at 877.217.9870
