Phase One Lenses
Phase One digital lenses are designed for ultimate image quality. High optical performance, fast apertures and low weight make them ideal tools for great images.The Schneider Kreuznach lenses provide you with the latest leaf shutter technology allowing for unprecedented high flash sync speeds of up to 1/1600s and world class image quality, performance and durability.
Key Benefits
- German design
- Leaf shutters
- Shallow depth of field
- 1/1600s flash sync
- Outstanding image quality
Why It Matters To Us…
Extremely high resolution digital backs require the very best lenses possible, in order to fully reproduce the amazing level of detail that is possible. Schneider-Kreuznach Blue Ring lenses fulfill this task with unprecedented performance.
Not to be overlooked, the Blue Ring lenses are excellently constructed, with wide, metal banded focusing rings that are well dampened, and provide excellent purchase for your fingers to make the necessary precise adjustments.
©PaulReiffer 2018; Phase One IQ4 150 MP; LS 40-80 f/4.0-5.6
Meet The Phase One Schneider Kreuznach Lens Family

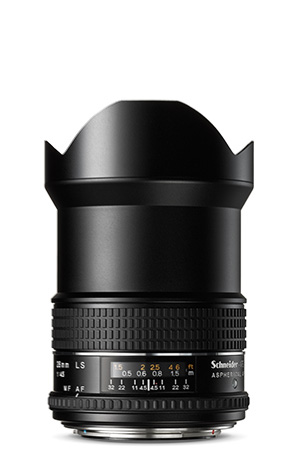

The 28mm LS Aspherical provides full coverage of the 645 format and the market’s fastest flash synchronization capabilities. It has superb edge to edge sharpness, a viewing angle of 102°, a minimum focusing distance of only 35 cm and fast flash synchronization capabilities up to 1/1600s, making it ideal for interior, landscape, architecture and creative editorial photography.

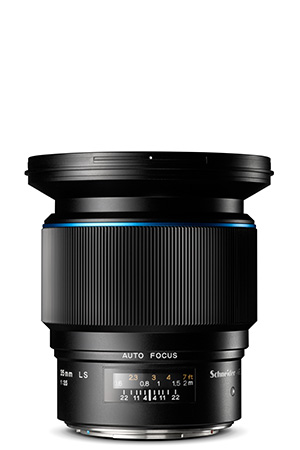

The Schneider Kreuznach 35mm LS lens is designed for ultimate quality wide angle imaging on medium format 645 format. This is a true architectural quality lens, challenged only by dedicated technical camera lenses. The professional choice for wide-angle, providing quality in both flash and daylight shooting. – Tack sharp wide-angle lens – Full frame edge-to-edge sharpness – Minimum optical distortion – Flash synchronization up to 1/1600th – Schneider Kreuznach “Blue Ring” design.

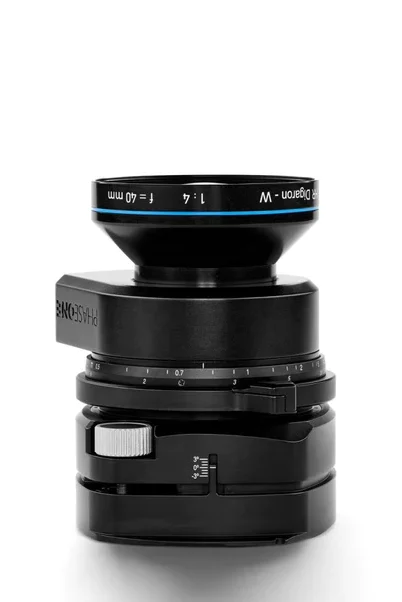

The Phase One XT 40mm Rodenstock HR Digaron-W f/4 Tilt Lens is an essential wide angle lens for dedicated landscape photographers. The innovative tilt design is optimized for Landscape scenes allowing for fine focal plane control, maximizing depth of field. When coupled with the 12mm shift of the XT Camera, the 3° tilt abilities of the lens puts image quality and composition control at your fingertips.

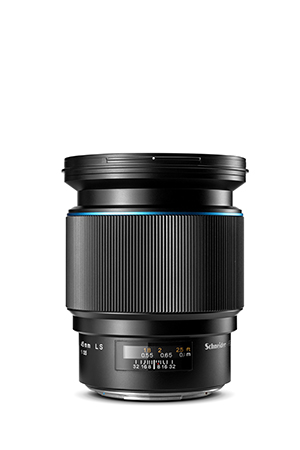

The Schneider Kreuznach 45mm LS lens completes our range of wide-angle possibilities for the XF Camera System. Providing a focal length that is perfect for almost any application, the Blue Ring 45mm f/3.5 offers edge-to-edge sharpness and nearly distortion free results. – Tack sharp wide-angle lens – Full frame edge-to-edge sharpness – Minimum optical distortion – Flash synchronization up to 1/1600th – Schneider Kreuznach “Blue Ring” design.

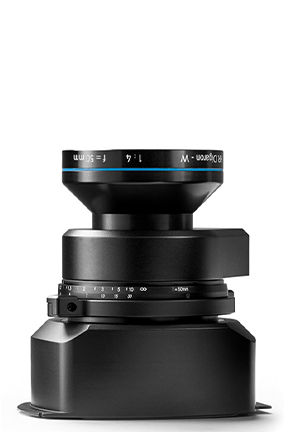

This is the Phase One XT 50mm Rodenstock HR Digaron-W f/4. At the heart of the XT – Rodenstock HR lenses is the X-Shutter. The X-Shutter is an intelligently integrated and electronically controlled shutter, born out of Phase One’s industrial applications and experience. The X-Shutter is purpose-built for the XT Camera System to allow for finer control in a smaller form factor. Powered by the IQ4, the X-Shutter shares in the ambition of the Infinity platform for future growth and flexibility.

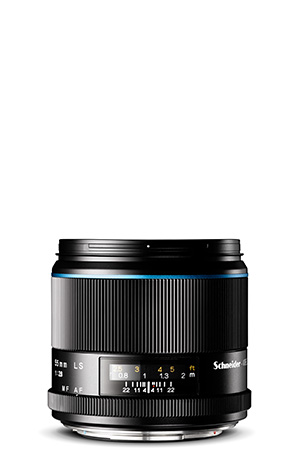

Flash sync up to 1/1600th of a second. Minimal distortion wide angle design, provides a normal look, great for editorial portraits and on location lifestyle photography.

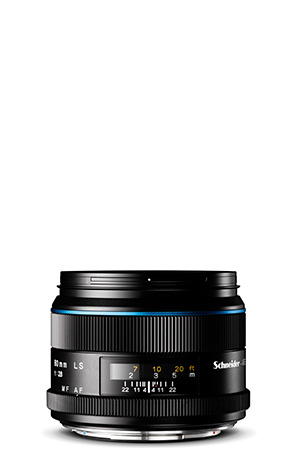

This is the standard focal length lens with the most versatility. Flash sync up to 1/1600th of a second. A preferred choice for on location fashion photographers using fill in flash.

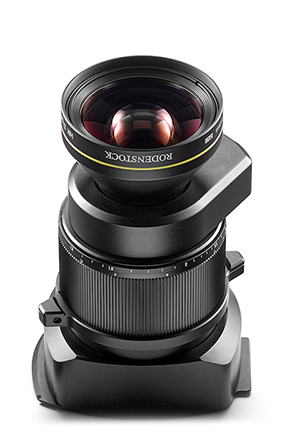

This is the Phase One XT 90mm Rodenstock HR Digaron-W f/5.6. At the heart of the XT – Rodenstock HR lenses is the X-Shutter. The X-Shutter is an intelligently integrated and electronically controlled shutter, born out of Phase One’s industrial applications and experience. The X-Shutter is purpose-built for the XT Camera System to allow for finer control in a smaller form factor. Powered by the IQ4, the X-Shutter shares in the ambition of the Infinity Platform for future growth and flexibility.

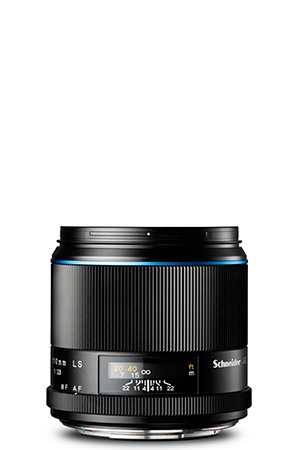

A longer focal length with just enough optical compression for full length fashion, beauty and portraiture. The preferred lens for on location portraits with a very shallow depth of field.

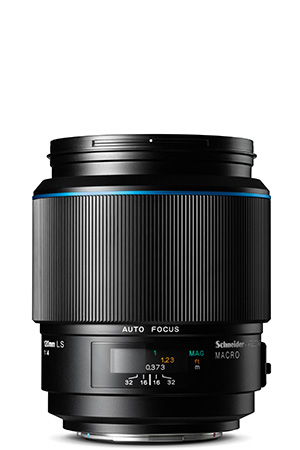

The Schneider Kreuznach 120mm LS Macro lens is designed for the ultimate quality Macro 1:1 image. This lens is ideal for close-up product shots, and equally ideal for close up beauty, action, nature and wildlife photography. The professional choice when you want to get as close as possible with the subject. – Edge-to-edge tack sharp images – Beautiful out-of-focus bokeh – Auto Focus and Manual focus – Min. focusing distance of only 37cm – Flash synchronization up to 1/1600th – Schneider Kreuznach “Blue Ring” design – Metal lens hood.

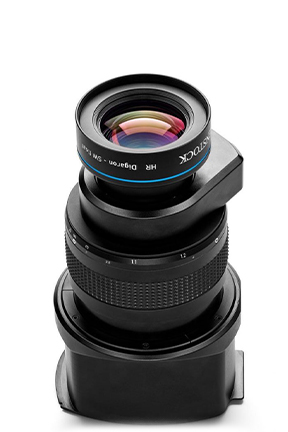

The Rodenstock HR Digaron-SW float 138 mm f/6.5 is an exceptional sharp long focal length lens for adjustable technical cameras intended for a wide distance range from infinity up to an image scale 1:5.
A long focal length very suitable for fashion, beauty, lifestyle and sports. In addition also ideal for nature photography due to very little camera vibration using leaf shutter only. The lens is very compact and light for a lens with such a focal length and quality.

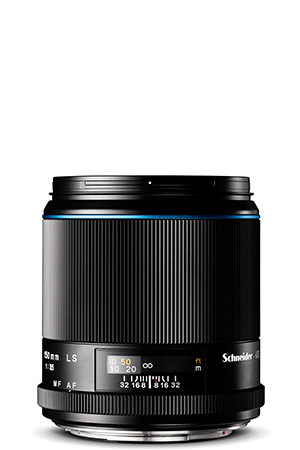

The Schneider Kreuznach 150mm f/2.8 IF lens is our fastest telephoto lens, providing razor thin depth of field at f/2.8 and beautiful out-of-focus bokeh. Perfect for studio and location portraiture alike.
The Schneider Kreuznach 240mm LS is optimized specifically for digital capture and is an ideal lens for you to get close to your subjects whether you’re shooting beauty, sports, landscape or wildlife.

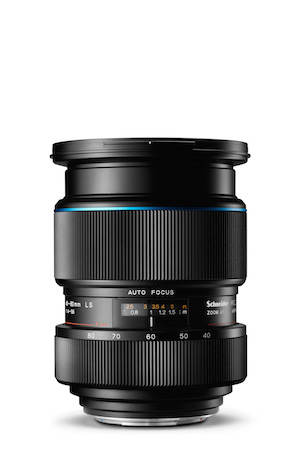

Schneider Kreuznach 40-80mm LS f/4.0-5.6 Zoom lens performs with ultra sharp rendition on all focal lengths. The optical quality of this zoom lens is comparable with what you would expect from a genuine prime lens. In combination with the Schneider Kreuznach 75-150mm LS f/4.0-5.6 Zoom, the focal length range is complete, from 40mm to 150mm with only two lenses.

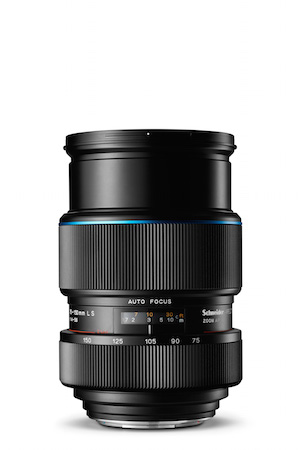

The Schneider Kreuznach 75-150mm LS Zoom is maybe the most all-round and versatile Normal/Tele lens for the XF camera system. In combination with the Schneider Kreuznach 40-80mm LS f/4.0-5.6 Zoom, the focal length range is complete, from 40mm to 150mm with only two lenses.

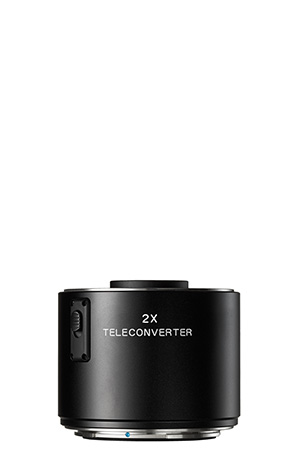

The Teleconverter offers photographers great optical compression that effectively eliminates the distance between objects in the captured scene. This is a great effect for shooting stunning landscape and forced perspective. Compatible exclusively with the Schneider Kreuznach 240mm LS and 150mm LS lenses, as well as the Phase One 150mm AF lens. This 2x Teleconverter lens effectively doubles the focal length of these lenses to 480mm and 300mm respectively.
Designed in Denmark
Danish design is known for functionalism, simplicity, and elegance. For over ten years, Phase One Denmark has led the design of the Phase One Camera System lenses, driving the finest engineering and manufacturing partners to create a higher standard of lens to support the creative ambitions of professional photographers.
German Optics Engineering
Founded in 1913, Schneider Kreuznach is a worldwide leader in optics and precision engineering. Building on a century of German optics expertise, the Blue Ring Lenses for the XF Camera are unmatched in quality, with a unique individual focus calibration making unprecedented autofocus precision possible.
Japanese High-Tech Manufacturing
The manufacturing home of our lenses in Japan is where lenses are built by hand, each handled from start to finish by a single expert who oversees every component is flawlessly assembled. Established over a century ago, the Japanese optics industry is the optimal location for manufacture of the Phase One lenses.
Phase One Lens Specifications | 28mm LS f/4.5 | 35mm LS BR f/3.5 | 45mm LS BR f/3.5 | 55mm LS BR f/2.8 | 80mm LS BR f/2.8 | 110mm LS BR f/2.8 | |
---|---|---|---|---|---|---|---|
Aperture Range | f/4.5 - f/32 | f/3.5 - f/32 | f/3.5 - f/32 | f/2.8 - f/22 | f/2.8 - f/22 | f/2.8 - f/22 | |
Angle of View | 102.7º | 89º | 73º | 64º | 47º | 29º | |
Focusing System | Auto Focus/Manual | Auto Focus/Manual | Auto Focus/Manual | Auto Focus/Manual | Auto Focus/Manual | Auto Focus/Manual | |
Filter | Rear sheet filter | 105mm | 95mm | 72mm | 72mm | 72mm | |
Optical Construction | 14 elements 10 groups | 11 elements 8 groups | 10 elements 7 groups | 7 elements 6 groups | 6 elements 5 groups | 6 elements 5 groups | |
Lens Hood | Bayonet "tulip" | Bayonet "tulip" | Bayonet "tulip" | Bayonet | Bayonet | Bayonet | |
Flash Sync with LS | Up to 1/1600th | Up to 1/1600th | Up to 1/1600th | Up to 1/1600th | Up to 1/1600th | Up to 1/1600th | |
Shutter Speed Max (FPS) | 1/125th | 1/125th | 1/125th | 1/125th | 1/125th | 1/125th | |
Dimensions (L x W) | 90mm x 136mm 3.5" x 5.5" | 111mm x 119mm 4.4" x 4.7" | 101mm x 122.9mm 4.0" x 4.8" | 77.6mm x 86.5mm 3..0" x 3.4" | 64.4mm x 86.5mm 2.5" x 3.4" | 83.3mm x 86.5mm 3.2" x 3.4" | |
Weight | 1100 grams 2.43 lbs | 1370 grams 3.02 lbs | 1220 grams 2.68 lbs | 600 grams 1.3 lbs | 500 grams 1.10 lbs | 635 grams 1.40 lbs | |
Equivalent to 35mm | 17mm | 22mm | 28mm | 34mm | 50mm | 68mm | |
Min. Focus Distance | 35cm/1.15 ft | 50cm/1.64 ft | 55cm/1.8 ft | 45cm/1.47 ft | 70cm/2.30 ft | 90cm/2.30 ft | |
Maximum Magnification | 0.15x | 0.104x | 0.116x | 0.118x | 0.115x | 0.116x | |
Area Covered (w x h) | 372mm x 276mm 14.6" x 10.9" | 518mm x 390mm 20.4" x 15.3" | 465mm x 349mm 18.3" x 13.7" | 310mm x 230mm 12.2" x 9" | 279mm x 377mm 11" x 14.8" | 310mm x 230mm 12.2" x 9" | |
Mount | XF 645 Bayonet | XF 645 Bayonet | XF 645 Bayonet | XF 645 Bayonet | XF 645 Bayonet | XF 645 Bayonet | |
Supported System | XF Camera System P1 & M 645/DF/DF+ | XF Camera System P1 & M 645/DF/DF+ | XF Camera System P1 & M 645/DF/DF+ | XF Camera System P1 & M 645/DF/DF+ | XF Camera System P1 & M 645/DF/DF+ | XF Camera System P1 & M 645/DF/DF+ | |
2x Teleconverter | No | No | No | No | No | No |
Phase One Lens Specifications | 120mm LS BR Macro f/4 | 150mm LS BR f/2.8 | 150mm LS BR f/3.5 | 240mm LS BR f/4.5 | 40mm-80mm LS BR Zoom f/4 | 75mm-150mm LS BR Zoom f/4 | |
---|---|---|---|---|---|---|---|
Aperture Range | f/4 - f/32 | f/2.8 - f/22 | f/3.5 - f/32 | f/4.5 - f/22 | f/4 - f/32 f/5.6 - f/45 | f/4 - f/32 f/5.6 - f/45 | |
Angle of View | 27º | 25º | 26º | 16.5º | Wide: 82º Tele: 47º | Wide: 50º Tele: 26º | |
Focusing System | Auto Focus/Manual | Auto Focus/Manual | Auto Focus/Manual | Auto Focus/Manual | Auto Focus/Manual | Auto Focus/Manual | |
Filter | 86mm | 95mm | 72mm | 86mm | 105mm | 95mm | |
Optical Construction | 9 elements 8 groups | 8 elements 7 groups | 5 elements 5 groups | 8 elements 8 groups | 15 elements 11 groups | 11 elements 10 groups | |
Lens Hood | Bayonet | Bayonet | Bayonet | Bayonet | Bayonet "tulip" | Bayonet "tulip" | |
Flash Sync with LS | Up to 1/1600th | Up to 1/1600th | Up to 1/1600th | Up to 1/1000th | Up to 1/1600th | Up to 1/1600th | |
Shutter Speed Max (fps) | 1/125th | 1/125th | 1/125th | 1/125th | 1/125th | 1/125th | |
Dimensions (L x W) | 91mm x 107mm 3.6" x 4.2" | 115mm x 141.6mm 4.5" x 5.6" | 87.1mm x 86.5mm 3.4" x 3.4" | 105mm x 169mm 4.1" x 6.7" | 111.8mm x 149.9mm 4.4" x 5.9" | 105.5mm x 172mm 4.2" x 6.8" | |
Weight | 960 grams 2.12 lbs | 1658 grams 3.65 lbs | 645 grams 1.42 lbs | 1600 grams 3.53 lbs | 1850 grams 4.08 lbs | 1800 grams 3.96 lbs | |
Equivalent to 35mm | 75mm | 93mm | 94mm | 150mm | Wide: 25mm Tele: 50mm | Wide: 47mm Tele: 93mm | |
Min. Focus Distance | 0.37cm/1.21 ft | 100cm/3.28 ft | 150cm/4.92 ft | 170cm/5.58 ft | 60cm/1.97 ft | 100cm/3.28 ft | |
Maximum Magnification | 1.00x | 0.192x | 0.12x | 0.17x | Wide: 0.094x Tele: 0.179x | Wide: 0.09x Tele: 0.164x | |
Area Covered (w x h) | 56mm x 42mm 2.2" x 1.6" | 280mm x 210mm 11" x 8.3" | 461mm x 341mm 18.1" x 13.4" | 327mm x 242mm 12.9" x 9.5" | W: 56mm x 42mm 22" x 16.5" T: 30cm x 23cm 11.8" x 9" | W: 636mm x 472mm 25" x 18.6" T: 341cm x 253cm 13.4" x 10.0" | |
Mount | XF 645 Bayonet | XF 645 Bayonet | XF 645 Bayonet | XF 645 Bayonet | XF 645 Bayonet | XF 645 Bayonet | |
Supported System | XF Camera System P1 & M 645/DF/DF+ | XF Camera System P1 & M 645/DF/DF+ | XF Camera System P1 & M 645/DF/DF+ | XF Camera System P1 & M 645/DF/DF+ | XF Camera System P1 & M 645/DF/DF+ | XF Camera System P1 & M 645/DF/DF+ | |
2x Teleconverter | No | No | Yes | Yes | No | No |
